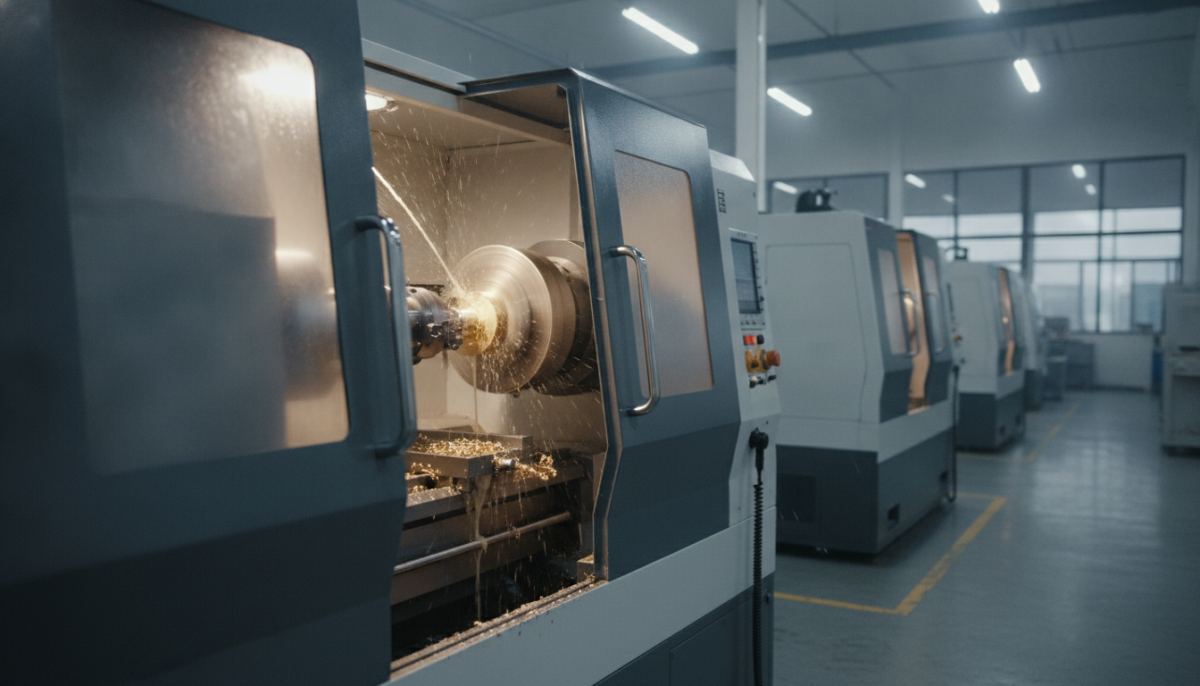

Mass Production Tolerances in CNC Automatic Lathes

In the precision manufacturing of mechanical components, dimensional accuracy is the decisive factor governing seamless assembly line operations and the long-term reliability of the end product. When producing components in high volumes, managing mass production tolerances in CNC automatic lathes ensures that the strict technical drawing boundaries established during engineering design are preserved across thousands—or hundreds of thousands—of consecutive cycles without drift. In safety-critical components such as lock cylinders, precision pins, hydraulic valve spools, and pneumatic fittings, an unmanaged variance of merely one-hundredth of a millimeter can compromise the entire mechanical assembly.

Within high-volume manufacturing, machining an isolated prototype to tight tolerances represents no substantial challenge. The true engineering benchmark lies in maintaining dimensional variance between the first part and the five-hundred-thousandth part within predictable, strictly controlled process capability limits. Swiss-type automatic lathes (sliding headstock) and conventional fixed headstock CNC lathes form the backbone of defense, automotive, medical, and security hardware industries due to their ability to hold micro-level tolerances during uninterrupted continuous operation.

Understanding Tolerances and Dimensional Stability in CNC Automatic Turning

In subtractive precision machining, a tolerance represents the permissible limit of dimensional variation required for a component to function reliably within its intended assembly. Because components produced on CNC automatic lathes typically exhibit rotational symmetry, machinists evaluate diametrical tolerances (such as standard ISO fits h6, h7, or h8), length parameters, concentricity, roundness, cylindricity, and surface roughness values (Ra and Rz) as an interdependent system. Depending on raw material characteristics and part geometry, runout deviations measured in single microns can lead to immediate batch rejection.

Swiss-type automatic lathes differ structurally from conventional turning centers. In a Swiss-type machine, the bar stock is fed through a guide bushing directly adjacent to the cutting tool. The cutting action takes place mere millimeters from the support point, effectively eliminating workpiece deflection caused by radial cutting forces. This dynamic enables the consistent production of long, slender parts with uniform diameter across their entire length. Fixed headstock automatic lathes, on the other hand, handle thicker, shorter workpieces with high structural rigidity and rapid material removal rates. Maintaining such repeatability over high volume requires disciplined operational routines, as detailed in our guide to quality control in CNC automatic lathe manufacturing.

Critical Factors Causing Tolerance Deviations in High-Volume Production

Even when operating parameters appear static, environmental variables and machine dynamics continuously fluctuate throughout a production run. If these variables are not methodically monitored and mitigated, process drift inevitably pushes critical features outside acceptable tolerance bands. The primary contributors to dimensional variance include:

• Thermal Drift: Continuous high-speed spindle rotation, hydraulic fluid heat buildup, and fluctuations in cutting coolant temperature induce microscopic thermal growth in the machine cast structure, ball screws, and tool platens. Significant micron-level dimensional offsets can occur between a cold morning startup and steady-state afternoon operations.
• Progressive Tool Wear: As carbide, cermet, or diamond inserts shear material, edge wear occurs along the flank and rake faces. As cutting edges dull, the effective cutting radius changes, tool deflection increases due to elevated cutting resistance, and workpiece diameters slowly drift beyond nominal values.
• Raw Material Variations: Cold-drawn free-cutting brass, leaded alloy steels, and stainless steel bars can exhibit subtle differences in hardness, grain structure, and surface straightness from bundle to bundle. Out-of-round bar stock or bar bow generates harmonic vibrations within the bar feeder channel, directly impacting turning concentricity.
• Dynamic Vibration and Loss of Rigidity: Suboptimal tool overhang, excessive depth of cut, improper guide bushing tension, or inadequate chucking pressure cause chatter marks, degrading surface finish and destroying geometric roundness tolerances.

Process and Machine Adjustments for Micron-Level Precision

Eliminating dimensional instability in high-volume production requires rigorous machine preparation and systematic process control. The first critical countermeasure is managing thermal equilibrium. Lathes must undergo dedicated spindle and axis warm-up cycles before production begins, while high-efficiency chiller units must regulate cutting oil or water-soluble coolant temperature within narrow thresholds. Consistent coolant viscosity and high-pressure delivery instantly evacuate heat directly from the shear zone, preventing local workpiece expansion.

The second pillar involves comprehensive tool life management. Modern CNC controllers track part cycle counts and spindle load data to apply dynamic wear offsets automatically. When an insert reaches a preset wear threshold, the system can automatically index to a redundant sister tool on the gang plate or turret without operator intervention. Furthermore, selecting insert geometries with positive rake angles and dedicated chip breakers prevents continuous ribbon chips from wrapping around the tooling, protecting both workpiece surface integrity and dimensional consistency.

In highly intricate mechanical lock assemblies, such as components engineered for master key systems, rotor core chambers and tumbler pin holes demand axial and positional tolerances within single-digit microns. Holding these tolerances across extensive production runs is achieved by leveraging CNC architectures equipped with high-resolution linear optical scales and full closed-loop feedback systems rather than relying solely on rotary encoder estimates.

Tolerance Standards in the Lock and Hardware Manufacturing Sector

Security lock mechanisms rely on the synchronized interaction of multiple microscopic components. For instance, in an electric rim cylinder, both the outer tubular barrel and the inner rotating shaft must match precise diametrical tolerances. If diametrical clearance exceeds acceptable limits, internal play compromises security against picking; conversely, if the clearance is too narrow, thermal expansion or minor dust accumulation causes the key mechanism to bind, preventing the latch from retracting upon electrical activation. In such security hardware, diametrical tolerances are routinely held within a ±0.01 mm boundary.

Precision turning also complements near-net-shape primary forming operations. In industrial workflows involving Cold Forging Press Stamping, forged blanks undergo secondary finishing on CNC automatic lathes to machine intricate seal grooves, internal threading, and mating surfaces to final tight tolerances. This hybrid production approach combines the superior metallurgical grain alignment and structural yield strength of cold-forged steel with the micron-level accuracy of CNC machining.

Frequently Asked Questions About CNC Mass Production Tolerances

What tolerance range is considered economically optimal in high-volume CNC turning?

In conventional precision manufacturing, tolerances between ±0.02 mm and ±0.05 mm represent a standard, highly cost-effective operating window. While tolerances tighter than ±0.005 mm (5 microns) are technically achievable on high-end Swiss lathes, they substantially elevate manufacturing costs due to reduced feed rates, frequent insert indexing, specialized tooling, and the necessity of temperature-controlled cleanroom metrology. Tight tolerances should be reserved strictly for functional mating features.

What is the primary difference in tolerance capability between Swiss-type and fixed headstock lathes?

Swiss-type automatic lathes support the bar stock right at the cutting point via a guide bushing, virtually eliminating component deflection. This enables exceptional tolerance stability on long, thin workpieces with high length-to-diameter ratios. Fixed headstock lathes hold the workpiece in a stationary collet or chuck; while highly rigid for shorter, larger-diameter parts requiring heavy material removal, they experience noticeable deflection on extended, slender components unless supported by a tailstock.

How often should part tolerances be inspected during mass production runs?

Following Statistical Process Control (SPC) methodology, a thorough First Article Inspection (FAI) is conducted after every raw material bar load, tool change, or insert indexing. During uninterrupted running, sampling intervals—such as measuring five consecutive parts every hour or every 100 cycles—are plotted on control charts (X-bar and R charts) to identify statistical drift before any part crosses the upper or lower specification limits.

Does raw material consistency directly influence dimensional tolerance capability?

Yes, significantly. Variances in alloy composition, micro-hardness differentials along the bar, and outer diameter ovality alter cutting forces dynamically. These variations result in fluctuating tool deflection and accelerated tool edge degradation, leading directly to diametrical inconsistencies. High-precision mass production relies on ground, calibrated, and straightened bar stock.

Quality Assurance and Metrology Methods in Mass Machining

Verifying that turned components continuously conform to approved engineering drawings requires a quality assurance framework as sophisticated as the machining equipment itself. To eliminate subjective operator error during rapid production cycles, traditional manual vernier calipers and micrometers are augmented by non-contact optical profile projectors, air gauging, and automated Coordinate Measuring Machines (CMM).

In high-speed production cells, non-contact optical shaft measuring systems scan entire turned profiles in seconds. These optoelectronic systems assess outer diameters, thread pitches, chamfers, and step lengths simultaneously, instantly comparing point clouds against the reference CAD model and updating statistical process data. For internal cylinder bore diameters, high-precision air gages provide micron-accurate pneumatic backpressure readings that detect taper and out-of-roundness instantly. By integrating metrology data directly with the machine controller, dynamic offsets can be applied proactively, ensuring zero-defect manufacturing.
